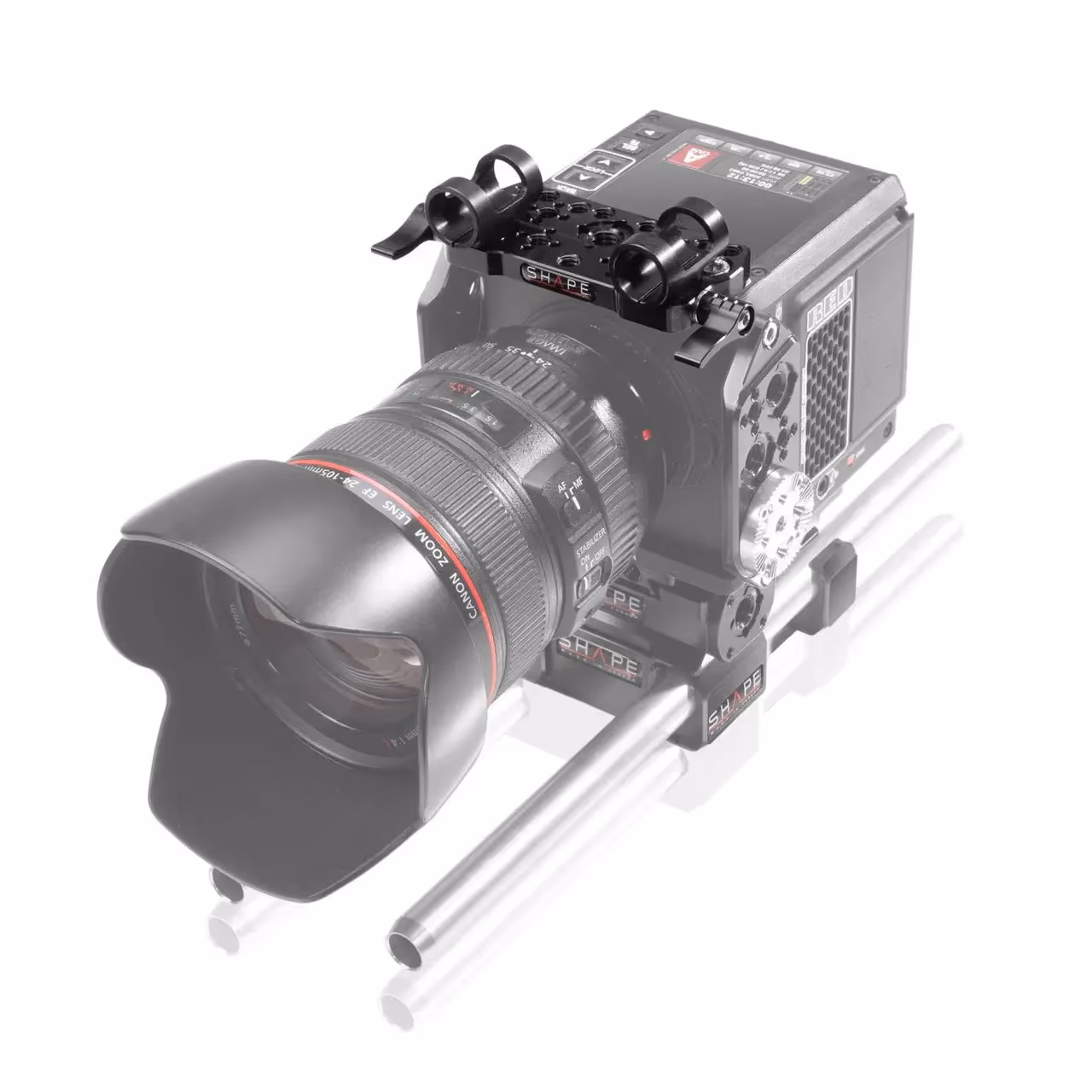

Shape - RED® KOMODO™ & KOMODO™ 6K Production pack Top Plate
SKU KOMOTP

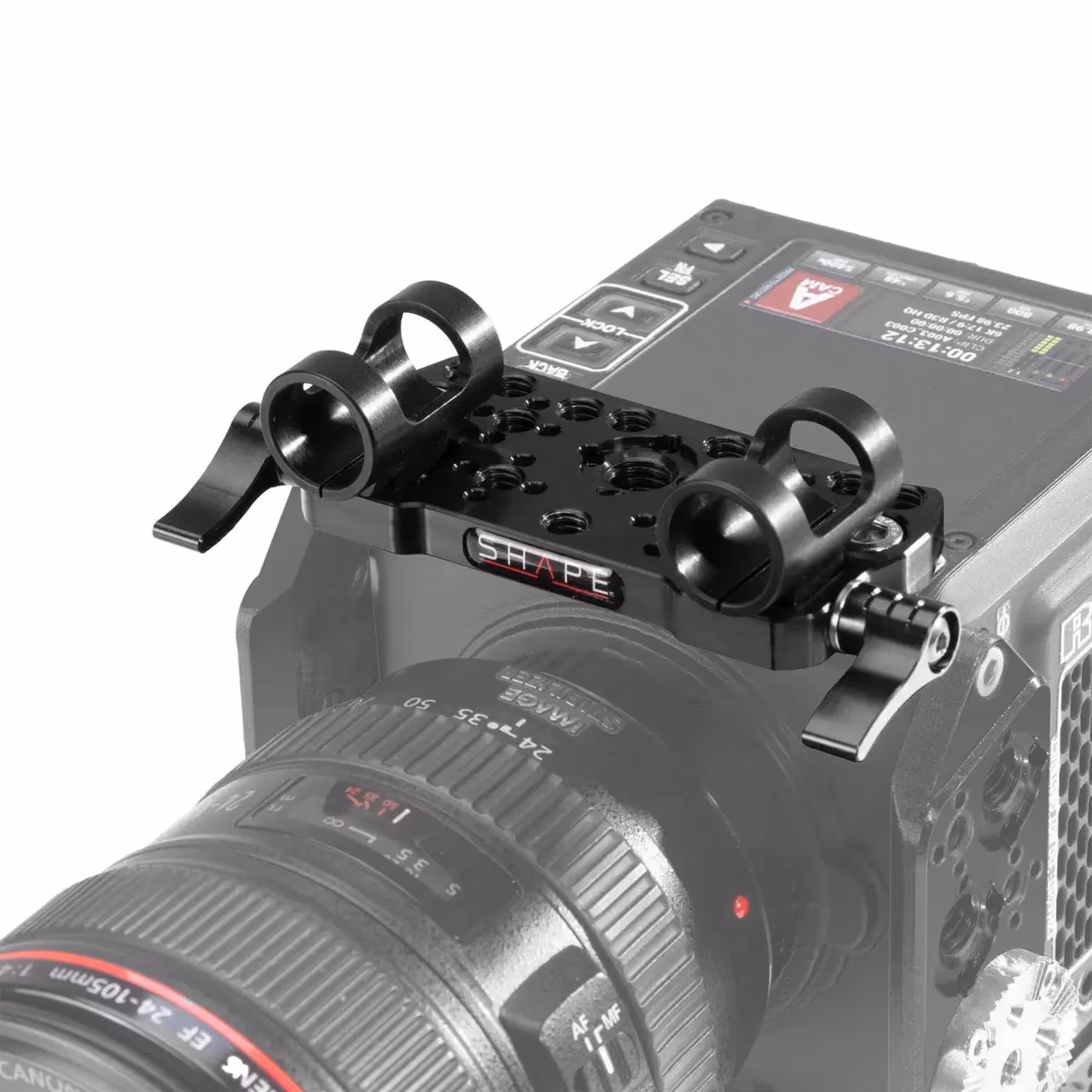

• Top plate designed for RED® KOMODO™ and KOMODO™ 6K Production Pack cameras. • Constructed from CNC anodized aluminum for durability. • Includes two removable 15 mm LW rod bloc clamps with ratchet system. • Features multiple anti-rotating threaded holes (3/8-16, 1/4-20) for secure accessory mounting.
€184.20incl. VAT€153.50 excl. VAT
Pay over time
On order — lead time on request
1
100% secure paymentVisaMastercardCBAmex
Free shipping on orders over €100In the box
1 × Top Plate
2 × 15 mm Rod Bloc Clamp
Detailed description
Material and Mounting

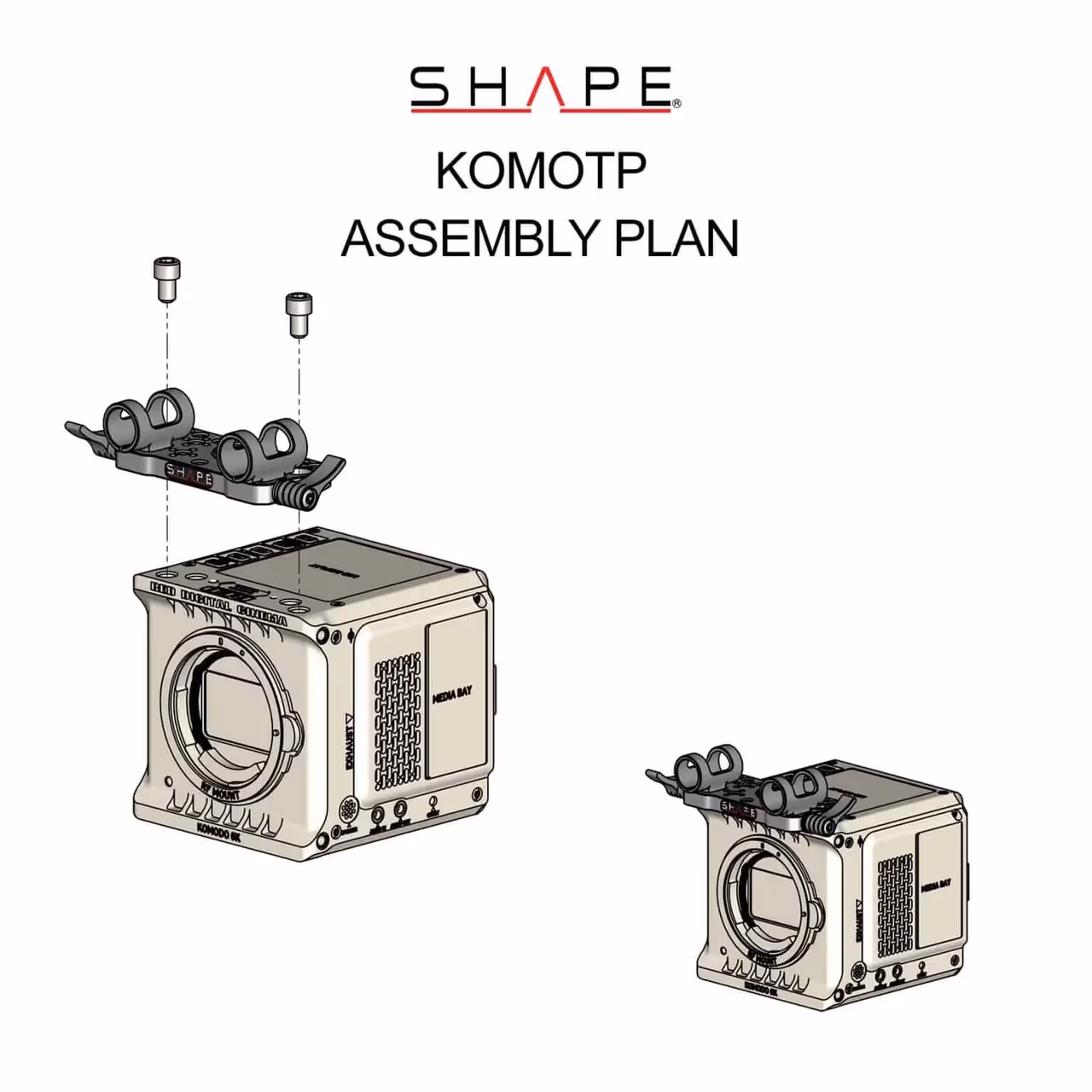

The top plate is made of CNC anodized aluminum and can be mounted on RED® KOMODO™ and KOMODO™ 6K Production Pack cameras using two 1/4"-20 UNC socket head cap screws.
Threaded Holes and Anti-Rotating System
It includes one 3/8"-16 hole with anti-rotating feature, four 1/4"-20 holes with anti-rotating features, and nine additional 1/4"-20 threaded holes, incorporating the ARRI anti-rotating system to improve accessory security.

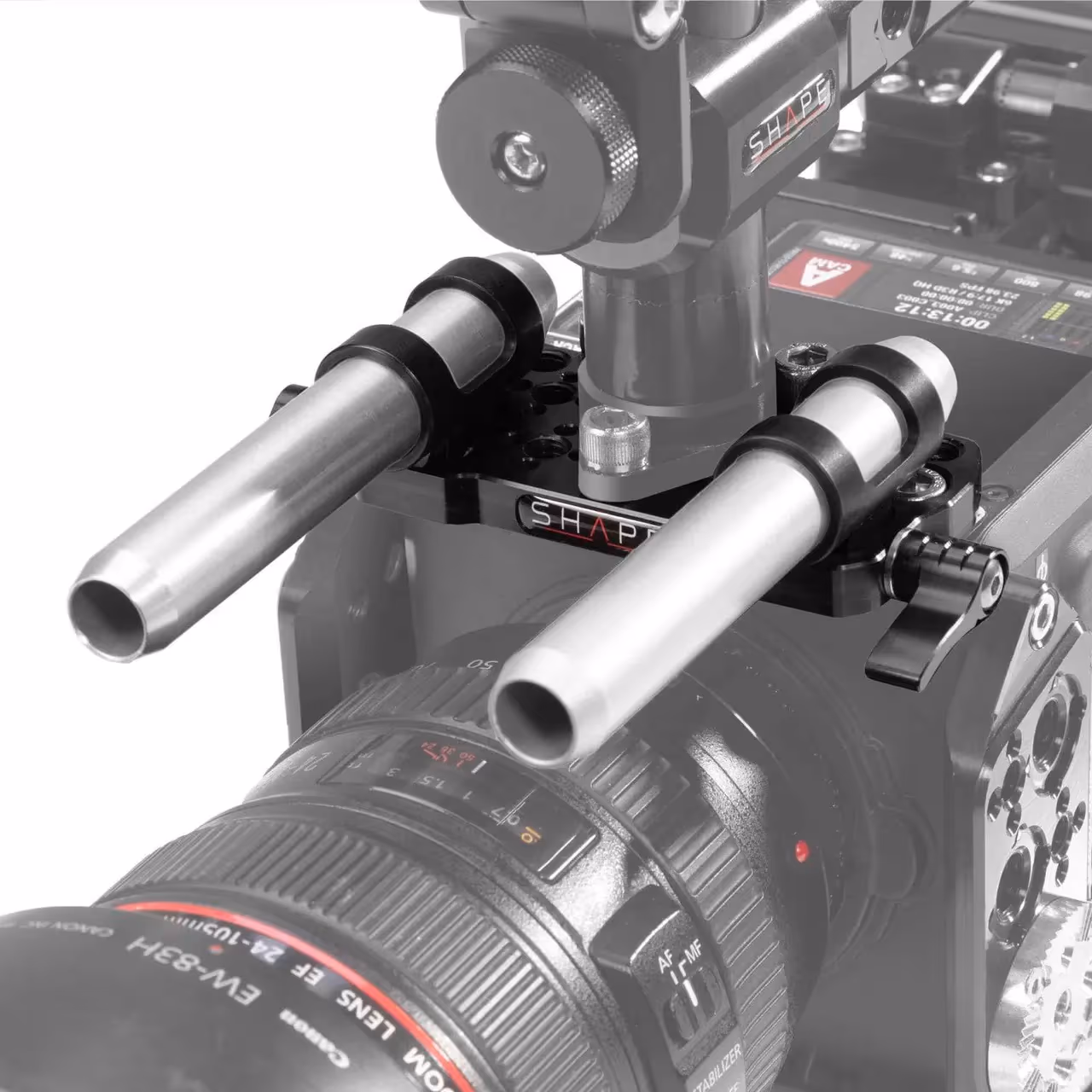

Rod Bloc Clamps
The top plate comes with two removable 15 mm LW rod bloc clamps (15CTH) mounted at the front, equipped with ratchet systems on each side to securely fasten rods and allow flexible accessory positioning.
